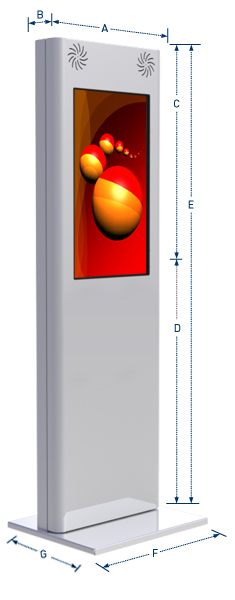

KIOSK ENCLOSURE

Sleek integrated design

Small Footprint

Rugged 14 gauge metal

Easy to service

Door design contoured with hidden hinges

DISPLAY MODULE

32" TFT active matrix LCD XGA (1360 x 768), 250 nit

4mm tempered protective glass overlay

Optional SAW (Surface Acoustic Wave) Touch screen

OPTIONAL HARDWARE ACCESSORIES (FREESTANDING)

Multiple card readers (smart, chip and 3 Mag stripe)

Rugged keyboard with trackball

POTS, xDSL, Wireless, Wi-Fi, Cellular

3" Thermal printer

Barcode scanner (omni-directional)

Uninterruptible power supply (UPS)

FREESTANDING CORE COMPUTING MODULE

1.6 GHz Intel® Processor (up to 2.4GHz Core 2 Duo)

Socket 775 Motherboard or equivalent, up to 1066 MHz FSB

10/100 Ethernet

512 MB RAM (up to 2 GB)

40GB HD (options available)

Solid state IDE HD option

Connectivity: PCI Slots, USB ports, 5 COM ports

Stereo sound with hardware volume control

3D graphics controller with up to 128 MB on board video

Air inlet with filter to minimize dust

Thermodynamically designed improving lifecycle

Software watchdog

Hardware watchdog

Line reversal and pulse detection
